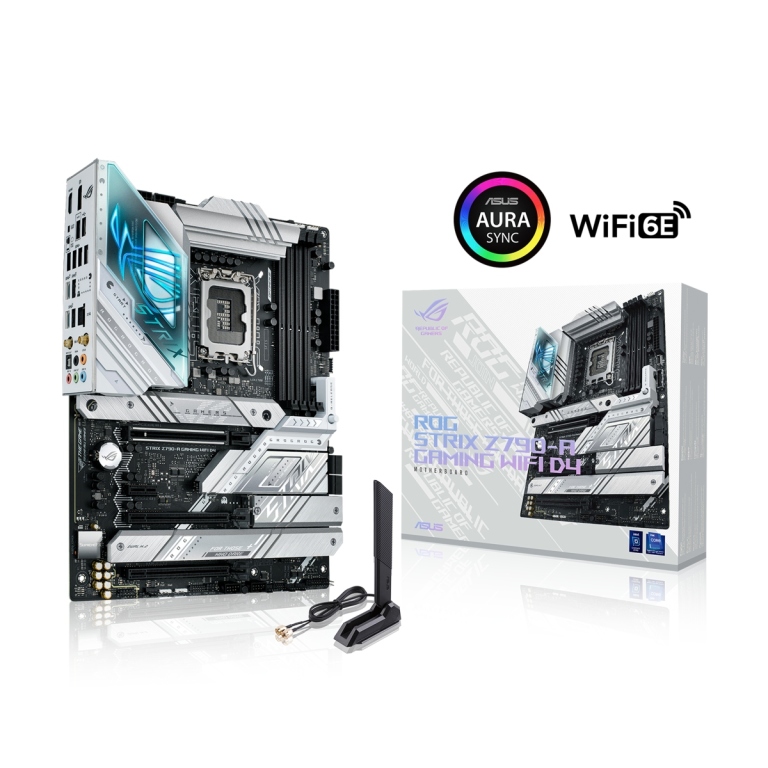

Asus ROG STRIX Z790-A GAMING WIFI D4

Chipset: Intel Z790 Rozmerový formát: ATX Podpora pre procesory: 13. Gen Intel Core Processors & 12. Gen Intel Core, Pentium Gold and Celeron Processors Pozícia na pamäti: 4 x DIMM Podpora pre pamäte: *4 x DIMM *Max. 128GB *DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266( OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000 Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) *OptiMem III Max. veľkosť operačnej pamäte: 128 GB Grafická karta: nie (1x DisplayPort + 1x HDMI port) Zvuková karta: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Sieťová karta: *1 x Intel 2.5Gb Ethernet *Wi-Fi 6E *2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) *Supports 2.4/5/6GHz frequency band *Bluetooth v5.3 Rozširujúce sloty: Intel 13th & 12th Gen Processors *1 x PCIe 5.0 x16 slot Intel Z790 Chipset *2 x PCIe 4.0 x16 slots (support x4/x4 mode) *1 x PCIe 3.0 x1 slot RAID radič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 SATA: *4 x SATA 6Gb/s ports M.2 : Intel 13. & 12. Gen Processors * M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset * M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode) * M.2_3 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) * M.2_4 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) USB: zadné USB - celkom 10, predné USB - celkom 7 ZADNÝ *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *3 x USB 3.2 Gen 2 ports (2 x Type- A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) PREDNÝ *1 x USB 3.2 Gen 2x2 konektor (supports USB Type -C with 30W PD) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers supports 4 additional USB 2.0 ports Interné porty: Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *5 x 4-pin Chassis Fan headers Power related *1 x 24-pin Main Power connector *2 x 8-pin +12V Power connectors Storage related *4 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB *1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous *3 x Addressable Gen 2 headers *1 x Aura header *1 x CPU Over Voltage jumper *1 x Front Panel Audio header (AAFP) *1 x 20-3 pin Externé porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack button *1 x Clear CMOS button BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobcu: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-d4-model/.
