8-port 10/100/1000 Gigabit Metal Housing Desktop Switch.Unmanaged Copper Gigabit Ethernet Desktop Switch.. 8 x 10/100/1000Mbps Auto.. Negotiating ports.. Metal housing.. Half.. /Full.. Duplex.. IEEE 802.3x Flow Control.. Auto.. Negotiation of MDI.. II / MDI.. X Cross Over for Easy Expansion.. Wall.. mountable.
.- Plug and Play operation
.- 8 Gigabit Ethernet ports
.- Non-blocking architecture: simultaneous full speed on all ports
.- Fanless, silent operation to fit in any environment
.- Quality of Service (QoS) queues for traffic prioritisation
.- Solidly built with metal housing
.- Cable diagnostics function to detect faulty network cables
.- D-Link Green™ technology, saves energy and increases the product’s lifespan
.

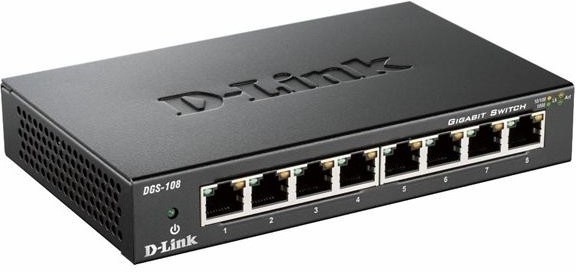

.D-Link’s DGS-108 Gigabit Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DGS-108 completely silent, ideal for offices, libraries or meeting rooms.Robust design.The DGS-108 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-108 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.QoS (Quality of Service).Despite being an unmanaged, Plug and Play switch, the DGS-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.Cable diagnostics function.The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.Power-saving technology.The DGS-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet™ technology in the DGS-108 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.Standards.
.- IEEE 802.3 10BASE-T Ethernet
.- IEEE 802.3u 100BASE-TX Fast Ethernet
.- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
.- ANSI/IEEE 802.3 NWay auto-negotiation
.- IEEE 802.3x flow control
.- IEEE 802.3az Energy Efficient Ethernet (EEE)
.
.Layer2 Features.
.- MAC address table: 8K
.- Auto MDI/MDIX crossover for all ports
.- Store-and-forward switching scheme
.- Full/half-duplex for Ethernet/Fast Ethernet speeds
.- Full-duplex only for Gigabit Ethernet speed
.- Jumbo Frames: 9000 Bytes
.
.Switching fabric.
.Data Transfer Rates.
.- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
.- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
.- Gigabit Ethernet: 2000 Mbps (full duplex)
.
.Packet Filtering/Forwarding Rates.
.- Ethernet: 14,880 pps per port
.- Fast Ethernet: 148,800 pps per port
.- Gigabit Ethernet: 1,488,000 pps per port
.
.RAM Buffer.
.LED Indicators.
.- Per port: Link/Activity/Speed
.- Per device: Power
.
.Quality of Service (QoS).
.- Supports 802.1p QoS
.- 4 Queues, Strict Mode
.
.Green features.
.- Energy Efficient Ethernet (EEE) standard
.- D-Link Green: power saving by cable length detection
.- RoHS compliant
.
.Power.
.- External 5 V/1 A Level "V” Power Adapter
.
.Power Consumption (DC input).
.- Standby: 0.55 watts
.- Maximum 2.8 watts
.
.MTBF.
.Temperature.
.- Operating: 0 to 50 °C
.- Storage: -10 to 70 °C
.
.Humidity.
.- Operating: 10% to 90% RH non-condensing
.- Storage: 5% to 90% RH non-condensing
.
.Dimensions (W x D x H).
.Certifications.
.- FCC Class B
.- ICES-003 Class B
.- CE Class B
.- C-Tick Class B
.- VCCI Class B
.- cUL
.- CB
.
.
