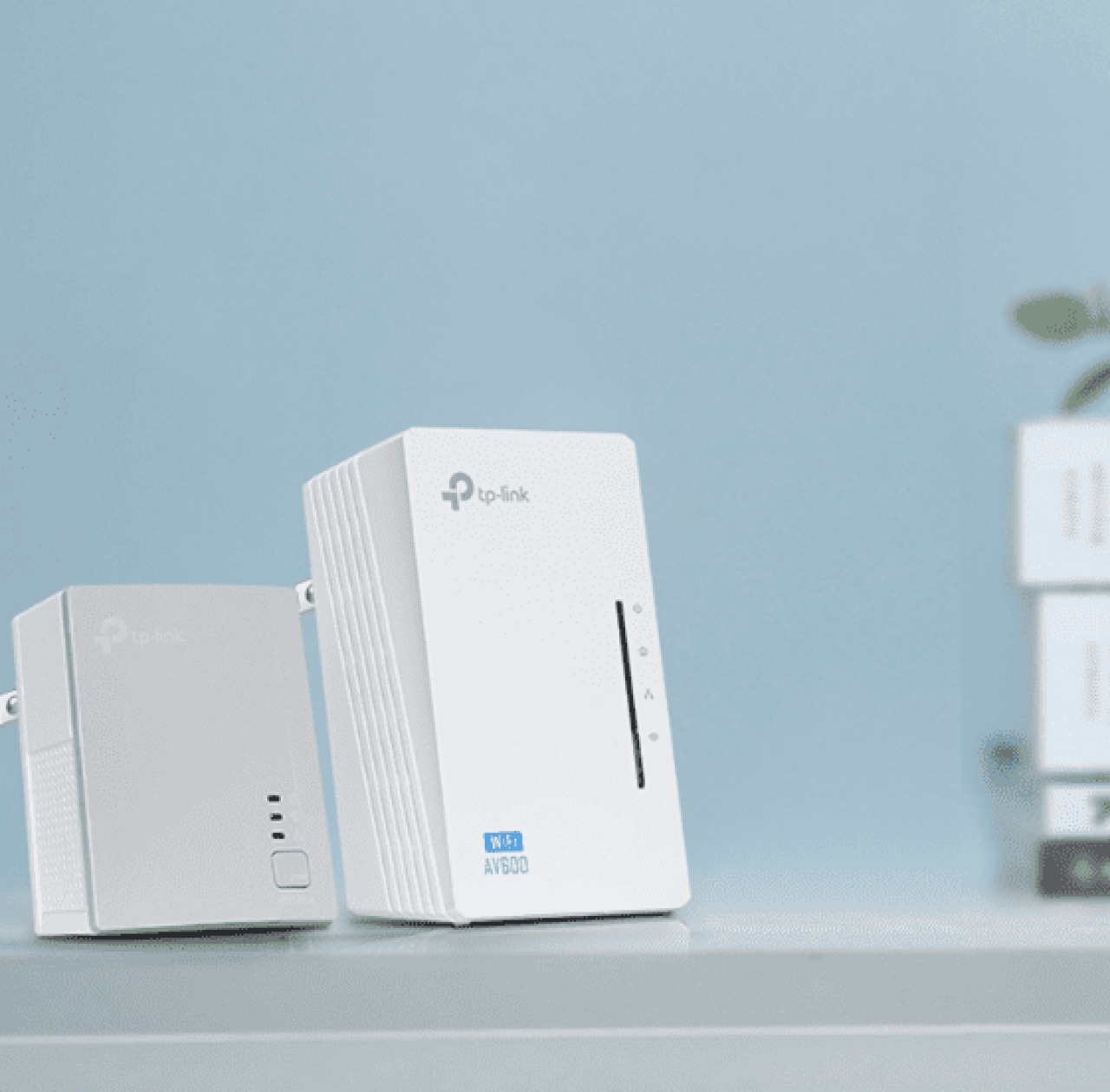

TP-Link TL-WPA4220 Starter Kit
AV500 2-port WiFi Powerline Extender KIT, including 1 TL-WPA4220 and 1 TL-PA4010, 500Mbps Powerline datarate, 300Mbps wireleses N,Plug and Play, 2 fast ethernet ports, WiFi Clone, Support Multiple IPTV Streams
Highlights:
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
What This Product Does
TP-LINK’s TL-WPA4220KIT extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 500Mbps - Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220KIT provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Extend WiFi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.
Plug and Play

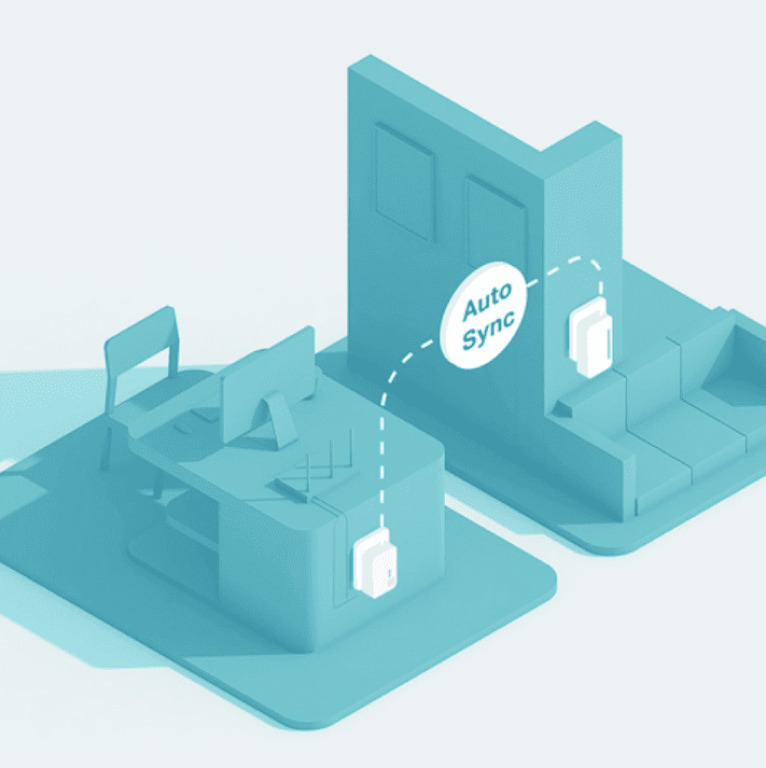

You can set up a hassle-free Powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
1. Plug one Internet connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi - and you're done!
*Recommended: Press the pair buttons for network security and data encryption.
- Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
- Two Ethernet ports allow your TVs, game consoles, or PCs connect to the Internet
- Up to 300-meter range over the household power circuit
- Easy to install, just plug in and play
- 128-bit AES encryption easily at a push of "Pair" Button
- Supports IGMP managed multicast IP transmission, optimizing IPTV streaming
HARDWARE FEATURES
Standards and Protocols
HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface
2*10/100Mbps Ethernet Port
Plug Type
EU, UK, US, AR
Button
Pair, Reset, Wi-Fi/Wi-Fi Clone
LED Indicator
PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )
3.7 x 2.1 x 1.6 in. (94×54×40mm)
Range
300 Meters over electrical circuit
SOFTWARE FEATURES
Modulation Technology
OFDM (PLC)
Encryption
Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification
CE, FCC, RoHS

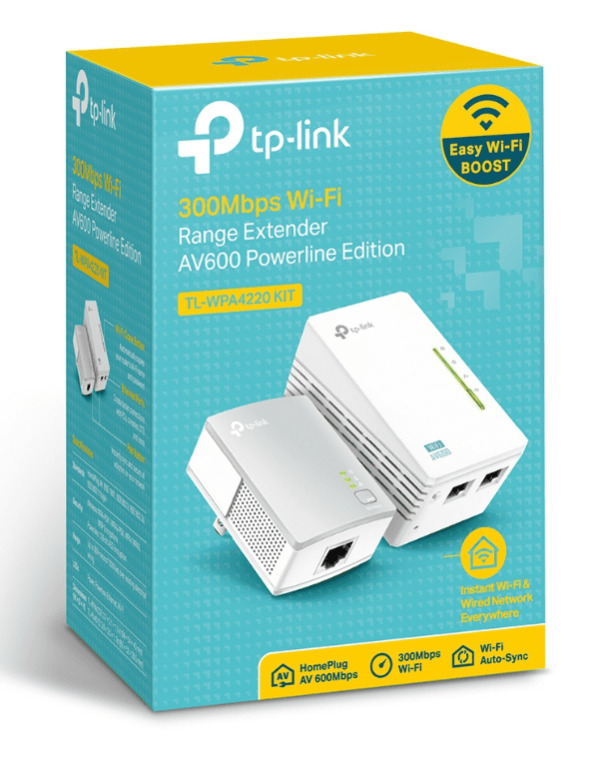

Package Contents
Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
