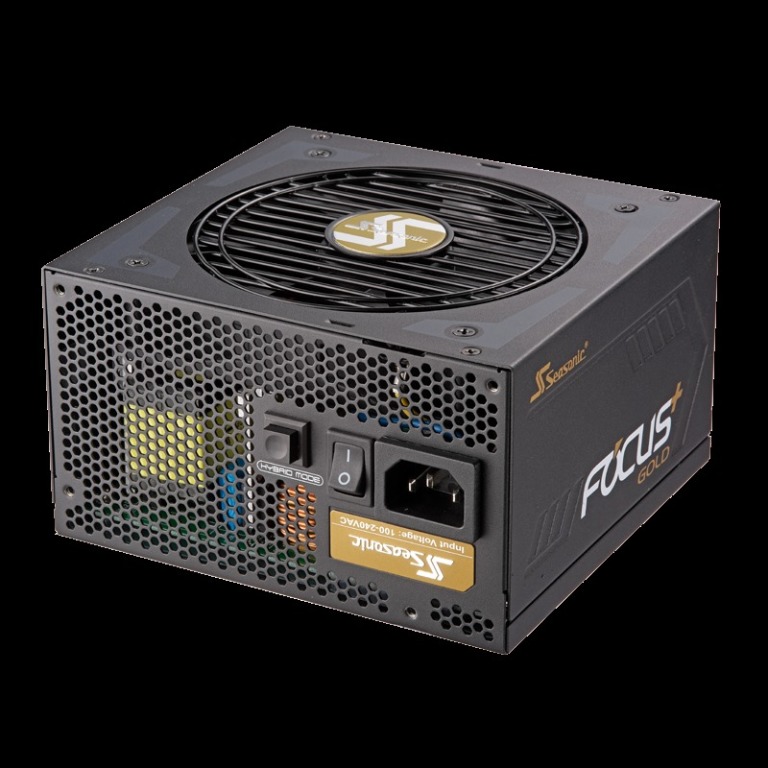

Seasonic Focus Plus SSR-850FX 850W

FOCUS PLUS 850 Gold Technical Specifications
80PLUS® Gold
Form Factor Intel ATX 12 V
Dimensions 150 mm (W) x 140 mm (L) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Hybrid Silent fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Motherboard, CPU, PCIe - Black webbeb cables
SATA, Molex, Floppy - Flat black cables
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
FOCUS Plus 850 Gold
AC Input Voltage: 100 V - 240 V
Current: 12 - 6 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 3.0 A
100 W 840 W 3.6 W 15 W
Total continuous power 850 W
