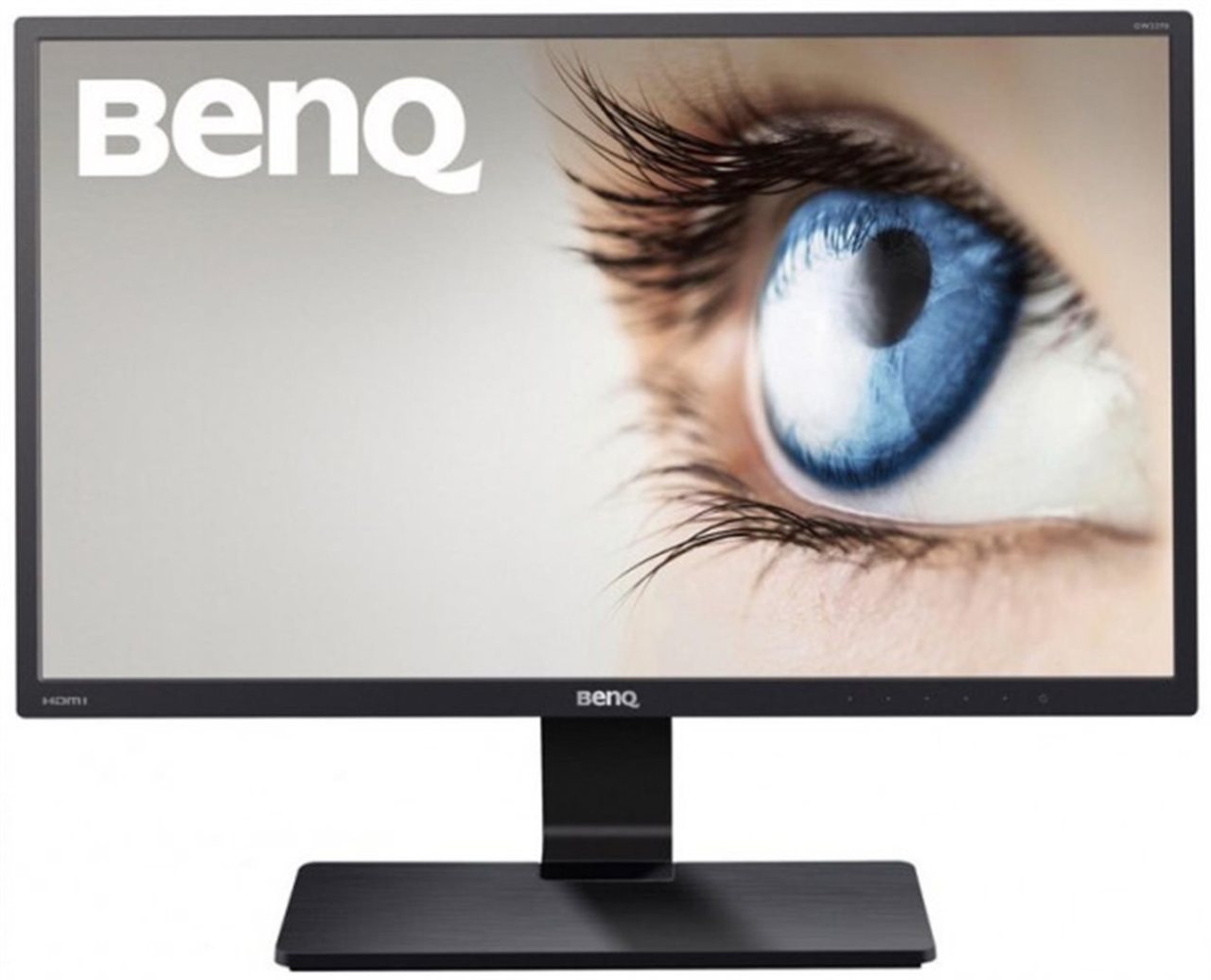

Benq GW2480

Product Color Black



Panel

LCD Size (inch) 23.8

Aspect Ratio 16:9

Resolution (max.) 1920x1080

Display Area(mm) 527.04x296.46

Pixel Pitch (mm) 0.274

Brightness (Typical) 250

Panel Type IPS

Viewing Angle (L/R;U/D) (CR>=10) 178/178

Response time 5ms

Display Colors 16.7 M

Color Gamut 72% NTSC

Color Bit 8

Backlight LED



Regulations

EPEAT Silver

TCO 7.0

Energy Star 7.0



Audio/Video Inputs/Output

Hor. Frequency (KHz) 30KHz~83KHz

Ver. Frequency (Hz) 50Hz~76Hz

Video Bandwidth (MHZ) VGA:210MHZ

HDMI/DP: 170MHZ



Dimensions & Weight

Dimensions with Wall Mount (HxWxD mm) (w/o Base) 340 x 540 x 50

CTN Dimensions (HxWxD mm) 466 x 730 x 140

Dimensions(HxWxD mm) 420 x 540 x 175

Net Weight (kg) 3.84

Net Weight (kg) (without stand) 3.04

Gross Weight (kg) 5.3



Special Features

AMA

HDCP 1.4

Dynamic Power Saving (DPS)

Flicker-free Technology

Display Mode

Preset Modes

Picture Mode

Low Blue Light

Bright Intelligence (B.I.)

VESA Wall Mounting 100x100

Tilt (down/up) -5~20

K Locker

OSD Language 18 Languages (English / Francais / Deutsch / Italiano / Espanol / Polish / Czech / Hungarian /Korean / Romanian / Netherlands / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic)



Included Accessories

Signal Cable HDMI1.3 cable



I/O

Speakers 1Wx2

HDMI 1x

DP Input 1x

VGA input 1x

Headphone Jack



Power

Power Consumption (Eco mode) 16W

Power Supply (90~264 AC) 90-264V AC build in

Power Consumption (On mode) 27W

Power Consumption (Power saving mode) 0.5W

Power Consumption (Off mode) 0.5W

Power Consumption (Base on Energy star ) 16W

Voltage Rating 90-264V AC build in

Power Consumption 27W

Power Off mode 0.5W



Reliability

MTBF(hr, exclude lamp) 60000

Backlight Life (hr) min 30000

Backlight Life (hr) Typical 30000



Certification

Vista Compatible

Windows® 7 Compatible

Windows® 8 Compatible

Windows® 8.1 Compatible

Windows® 10 Compatible
